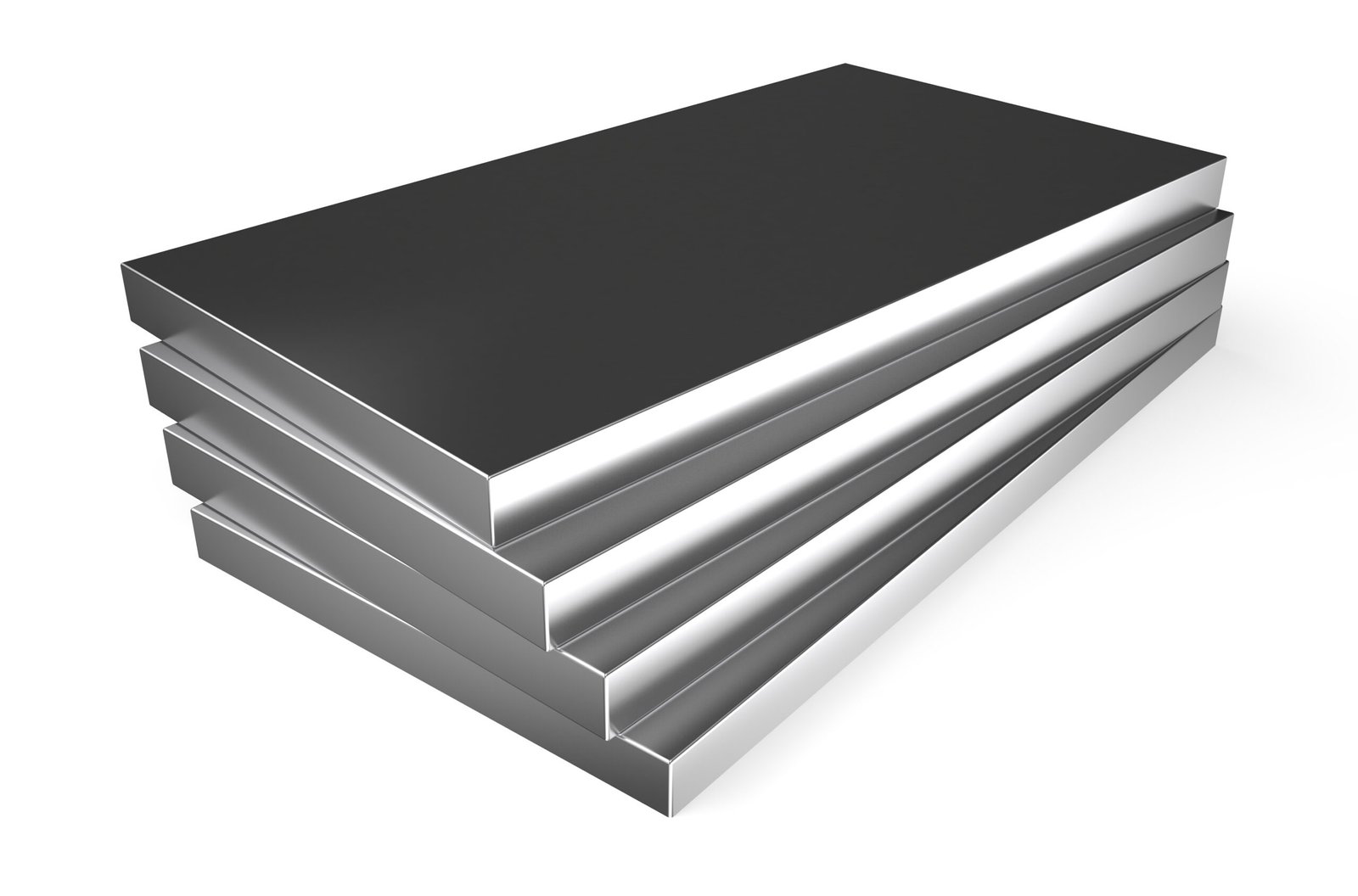

Titanium Flat Products Overview
| Product Type |
Description |
| Sheet |
Thin, flat titanium (< 4 mm thick) |
| Plate |
Thicker flat titanium (≥ 4 mm thick) |
| Coil |
Continuous rolled sheet in coil form |
Titanium Sheet, Plate & Coil Sizes
Thickness Guide
| Product |
Thickness Range |
| Foil |
< 0.5 mm |
| Sheet |
0.5 mm to < 4.0 mm |
| Plate |
≥ 4.0 mm (up to ~150 mm) |
| Coil |
Usually 0.3 mm – 3.0 mm |
⚠️ The boundary between “sheet” and “plate” may vary slightly by standard or supplier.
Standard Widths & Lengths
| Form |
Width (mm) |
Length (mm) / Coil Length |
| Sheet |
1000 – 1500 mm |
2000 – 3000 mm |
| Plate |
1000 – 2000 mm |
2000 – 6000 mm |
| Coil |
Up to 1250 mm |
Up to 200 meters (thin coil) |
Custom cuts and oversized sheets/plates are available upon request.
Titanium Grades for Sheet, Plate, and Coil
Commercially Pure (CP) Grades: Grades 1 to 4
| Grade |
Properties |
Common Uses |
| 1 |
Softest, highest corrosion resistance |
Marine, chemical, medical |
| 2 |
Most used CP titanium, good strength/formability |
Heat exchangers, medical, aerospace |
| 3 |
Higher strength, moderate corrosion resistance |
Aerospace structures |
| 4 |
Highest strength CP, less ductile |
Hydraulic systems, aerospace |
Titanium Alloys
| Grade |
Composition |
Features |
Applications |
| 5 |
Ti-6Al-4V |
High strength, fatigue & corrosion resistance |
Aerospace, implants, motorsports |
| 7 |
Ti-0.2Pd (CP + Pd) |
Superior corrosion in reducing acids |
Chemical, desalination |
| 9 |
Ti-3Al-2.5V |
Medium strength, excellent formability/weldability |
Tubing, aerospace, bicycles |
| 12 |
Ti-0.3Mo-0.8Ni |
High corrosion resistance, moderate strength |
Marine, chemical plants |
| 23 |
Ti-6Al-4V ELI |
Lower interstitials for biocompatibility |
Surgical, dental implants |
Specifications and Standards
| Standard |
Description |
| ASTM B265 |
Titanium and titanium alloy flat products (sheet/plate) |
| AMS 4911 |
Aerospace spec for Grade 5 (Ti-6Al-4V) sheet/plate |
| AMS 4902 |
CP titanium sheet and plate (Grade 2) |
| ISO 5832–2/3 |
Surgical implant titanium grades |
Mechanical Properties Summary (Select Grades)
| Grade |
Yield Strength (MPa) |
UTS (MPa) |
Elongation (%) |
Hardness (HRB) |
| 1 |
170 |
240 |
24 – 30 |
~70 |
| 2 |
275 |
345 |
20 – 30 |
~80 |
| 5 |
880 |
950 |
10 – 14 |
~100–110 |
| 23 |
795 |
860 |
14 – 15 |
~95 |
Applications by Product Form
Titanium Sheet
- Aircraft skin, panels
- Medical plates and cases
- Cladding, architecture
- Heat exchangers
Titanium Plate
- Structural aerospace parts
- Ship hulls and pressure vessels
- Chemical tanks, reactors
- Tooling and dies
Titanium Coil
- Continuous production parts
- Roll-formed components
- HVAC, industrial tubing
- Architectural cladding
